No boundaries.

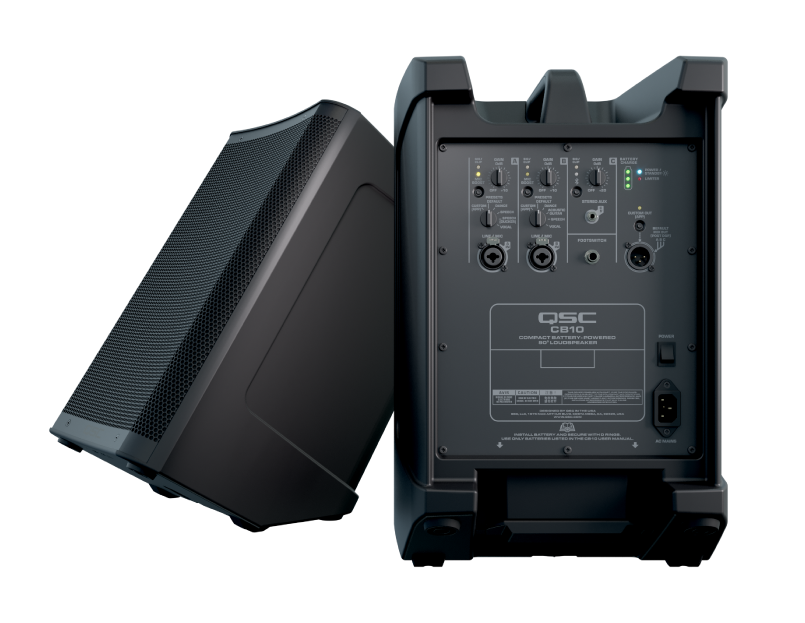

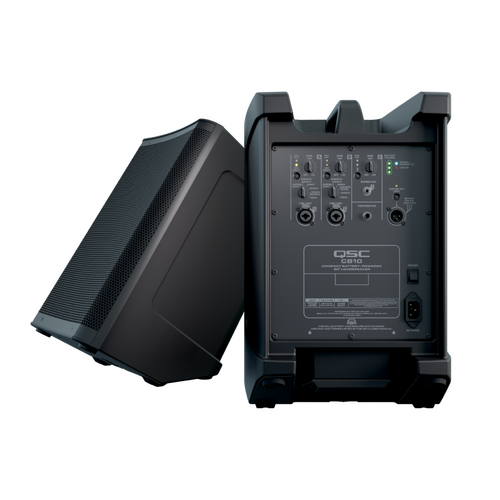

The CB10 is a compact,
battery-powered loudspeaker system offering unrivaled audio performance and versatility. It features a 10-inch LF driver, 1-inch compression driver and 3-channel mixer for microphones, instruments and Bluetooth® streaming. Ideal for DJs, event professionals and musicians, it offers easy plug-and-play operation and customization via the QSC Loudspeaker Control app.

Key Features

Powerful, Compact 2-way System

  • 440 watts of peak power (Class D)
  • 10-inch woofer
  • 1-inch HF compression driver
  • 127 dB @ 1 m (peak SPL)

Integrated 3-Channel Mixer
Wireless Remote Control

  • Two combo XLR inputs with independent Factory Presets
  • QSC Loudspeaker Control App (iOS & Android) for convenient system remote control

Room Delay

  • 200 ms (max) of room delay

Simple to Use

  • Large carry handle on the enclosure top
  • Lightweight and portable
  • 30 degrees tilt back (floor deployment)
  • Integrated pole cup (stand deployment)

Bluetooth® 5.1 Audio

  • For control and audio with True Wireless Stereo (TWS) Bluetooth

Battery and AC Power

  • Up to 12 hours of battery power (rechargeable in approx. 4 hrs)
  • User-installable/removable battery pack
  • AC power for unlimited steady operation

Model CB10
Configuration Two-way Rechargeable Loudspeaker System
LF Transducer: 254 mm (10-inch), cone
HF Transducer: 25.4 mm (1-inch), compression driver
Frequency Response (-6 dB) 51 Hz - 18 kHz
Frequency Range (-10 dB) 47 Hz - 20 kHz
Nominal Coverage Angle: 90° Axisymetric
Maximum Rated SPL1: 127 dB @ 1 m
Amplification (peak): Class D, 440 W
Cooling: Convection cooling
Backpanel Controls: 3 x Rotary level potentiometers (Gain)
2 x MIC Boost Push-Switch
2 x 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls)
1 x Bluetooth Switch
1 x Output Select Switch
1 x AC Power Switch
Loudspeaker Control App Functions: Input Channels: Gain Control, Presets (Channels A and B), EQ
Reverb (Channels A and B )
Ducker (Channel A)
Contour Selection
Custom Output Routing
Footswitch Functionality: Channel Mute, FX Mute, or Channel Boost
Bluetooth Audio Configuration
Loudspeaker Firmware Updates
Backpanel Indicators: 3 × Input Signal/Clip LEDs
2 x MIC selected LEDs
3 x Battery Charge LEDs
1 x Limiter Active LED
1 x Bluetooth LED
1 x Output Select LED
1 x Power/Standby LED
Connectors: 2 × locking XLR/F ¼ inch combo (Line Input and Mic/Line Input)
1 × 3.5 mm TRS (Stereo Input)
1 x 6.3 mm TS (Footswitch)
1 × XLR/M (Mix Output)
1 × locking IEC Power Connector
DC Power (Battery): Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module (1x unit included with CB10)
Battery life: up to 12 hours / Battery charging time: approx. 4 hours
AC Power Input: Universal Power Supply: 100-240 VAC, 50/60 Hz
AC Power Consumption2: 100 VAC, 1A / 120 VAC, 0.9 / 240 VAC, 0.5A
Enclosure Material: Polypropylene
Color: Black (RAL 9011)
Grille: Powder-coated steel with internal lining (18 Gauge)
Loudspeaker Dimensions (H×W×D): 465 x 313 x 287 mm / 18.3 x 12.3 x 11.3 in
Carton Dimensions (H×W×D): 559 x 406 x 381 mm / 22 x 16 x 15 in
Net Weight: 12.2 kg / 26.9 lb
Shipping Weight: 14.5 kg / 32 lb
Battery Chemistry: Lithium Nickel Manganese Cobalt Oxide
Regulatory: CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A
California Prop 65 ⓘ: Warning Information
Optional Accessories: CB10-CVR: Weatherized Cover for the CB10 Loudspeaker System
CB10-BATTERY: Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module
SKU QACB10
Brand QSC
Shipping Weight 15.0000kg
Shipping Width 0.390m
Shipping Height 0.570m
Shipping Length 0.410m
Shipping Cubic 0.091143000m3
